Button



ITEMS NEEDED

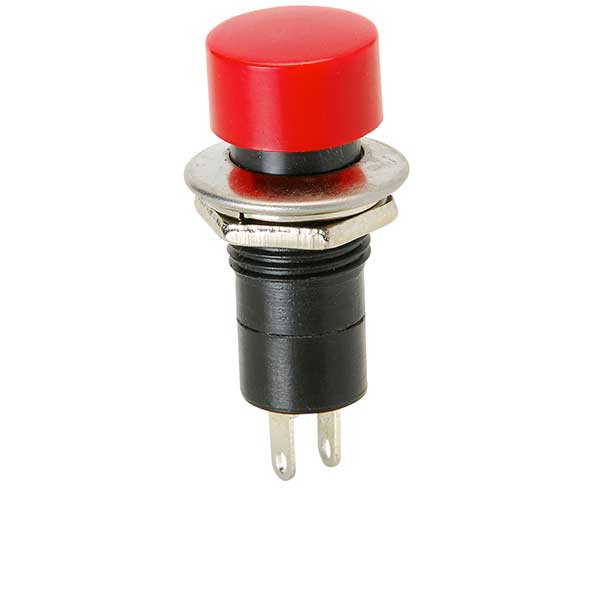

  • Push Button

  • Female Connector

    2 x

  • Heat Shrink Tubing

    Electrical Tape

HOW TO ASSEMBLE

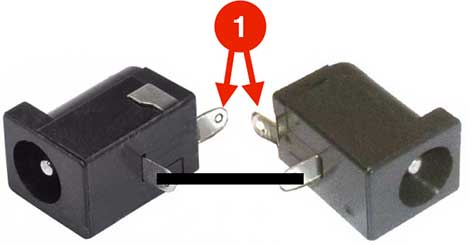

To do the button, fold the back pins (1) backwards. It will be the button who’ll connect these pins, so they cannot touch one another.

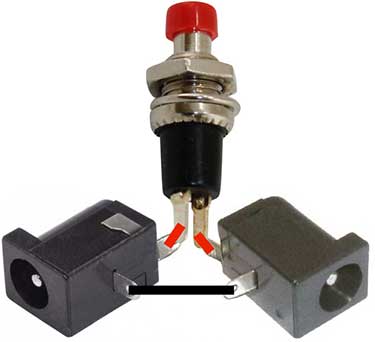

Now it’s a matter of soldering the positive and negative pins, like in the diagram. In some buttons, maybe it’s better to solder the pins directly (pin with pin), in others, maybe it’s easier to use a piece of an electric cable.

To understand how to built, watch the On/off switch module video and exchange the key for the button component.



watch the video




HOW TO TEST
